The FLIR Elara R-290 is a compact ground radar used to detect and provide early warning of intruders as part of a larger video surveillance system. Radars can track targets in all weather and lighting conditions and dynamically map them in real time for position intelligence. The Elara R-290 features a 90-degree field of view and up to 400-meter range for vehicle tracking and 200-meter range for human tracking, providing wide-area protection and situational awareness beyond the fence line. With simultaneous tracking of up to 32 targets and geolocation capability, the Elara R-290 can activate alarms and guide PTZ cameras for visual verification to maximize security coverage and increase the amount of time available to react to a threat.
[Missing text '/minicart/addedtocart' for 'Korean (Korea)']
[Missing text '/minicart/gotocart' for 'Korean (Korea)']
[Missing text '/minicart/shippinginfo' for 'Korean (Korea)']
-
Detect intrusions faster
Receive advanced warning of intrusions beyond the fence line. Scan field of view up to 10 times per second for fast target detection and smooth tracking of humans and vehicles.
-
Expand situational awareness
Continuously track and precisely locate up to 32 targets simultaneously, and quickly intercept threats in any environmental or weather condition.
-
Integrate quickly and affordably

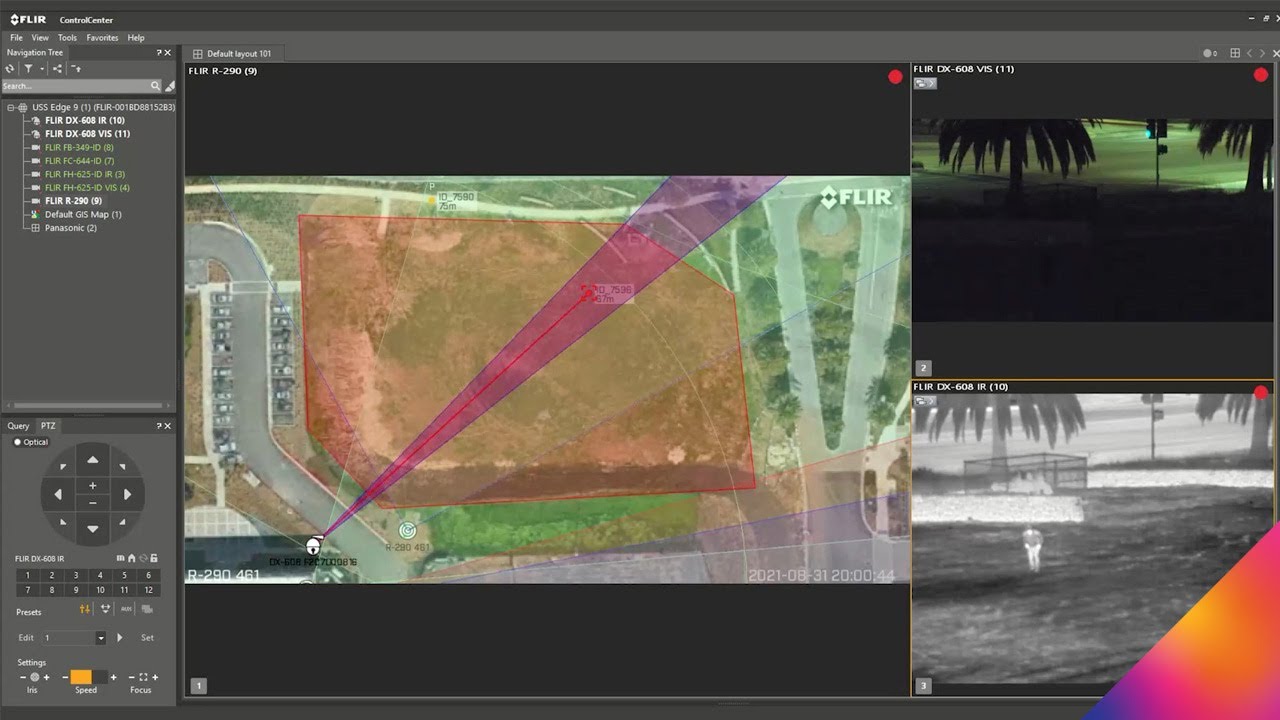

Integrate radar target tracking information with video management systems (VMS) for precise accuracy and full control.
사양
개요
- 비 작동 온도
- -50°C to 85°C
- 크기 [H x W x D]
- 6.3in × 6.3in × 7.7in (161mm × 161mm × 195mm)
- 틸트 범위
- +30° / -60°
일반
- I/Os
- RJ45 Ethernet, 10-pin Terminal Block
- RF Transmit Power
- 14dBm (0.025W)
- 무게
- 5.1lbs (2.3kg)
- 입력 전압
- 12V DC, 24V AC, and POE+
일반
- 구성품
- Radar, Back Box, Back Box Cover, Back Box Side Cover, Wall Mount Plate, RJ45 Cover, Screw Driver, Hex Wrench, 10-Pin I/O Connector
측정 및 분석
- Min Target Detection Speed
- 0.2m/s
- Range Resolution
- 1.5m
- Vehicle Detection Range
- 400m
- 각도 정밀도
- 0.6m
- 목표물 정보
- GPS coordinates, velocity, RCS, range, azimuth angle/direction, heading, course/track, target ID
- 사람 감지 범위
- 200m
- 주파수 범위
- 24.075-24.175GHz
- 커버리지 구역
- 7.6 acres / 30,000m2 (Human Detection)
화상 및 광학 특성
- 시야각 (FOV) [H × V]
- 90 x 20
- 재생률
- Up to 10Hz
환경
- IP등급
- IP66
- 작동 온도
- -40°C to 70°C
